PIC10F200 (using Assembly) – Blinking alternately 2 LEDs and dimming LED using PWM – Basic Part2

Arduino & Electronics Leave a comment

This post is possible because of CircuitBread tutorials (https://www.circuitbread.com/tutorials). Thank you guys for such clear and concise tutorials. CircuitBread 👍👍.

Flashing alternately 2 LEDs using PIC10F200(SN:30)

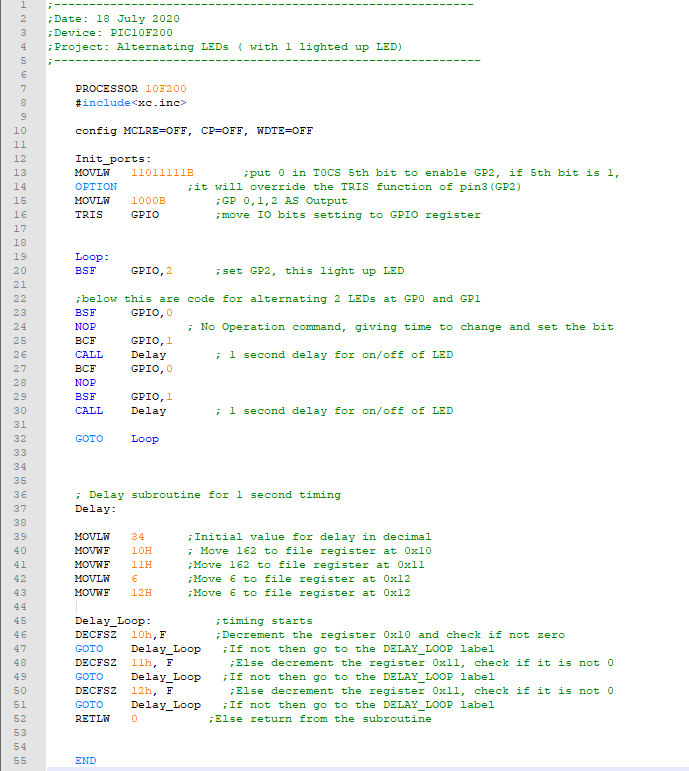

The code in Assembly:

Setup during microcontroller programming
Circuit diagram during programming and after.
Video during programming with PICKIT4

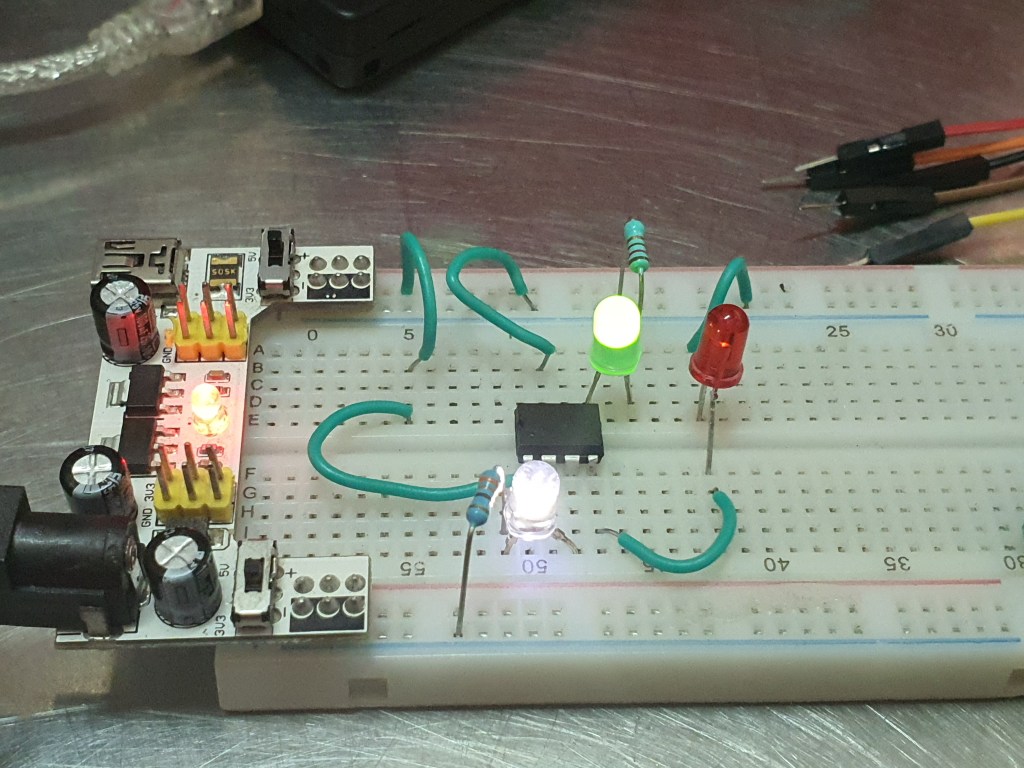

The red LED is a bit dim, will get better ones next time.
After programing

Dimming and brightening LED using PWM on PIC10F200

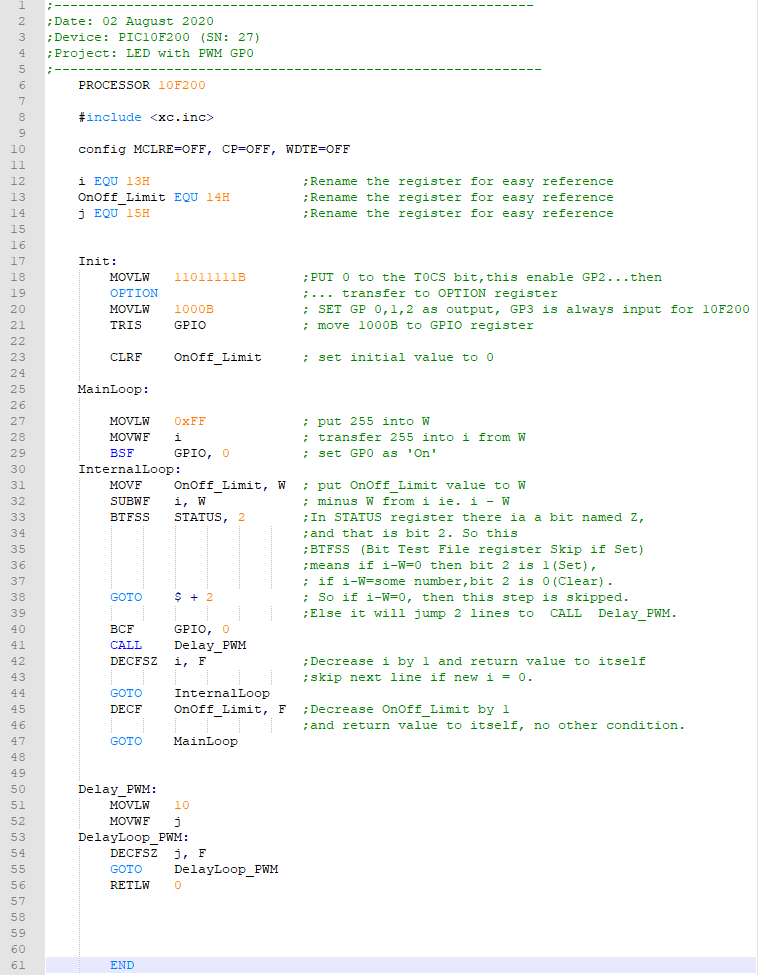

The code in Assembly,

Line 27 to 47, will require some time and effort to understand. Basically it is changing the duty-cycle of the PWM.
